GENOVA Panorama MC
Multidecks
A display cabinet which is already anticipating the pressing restrictions and the parameters for refrigerant gasses which will become compulsory in 2020. Genova Micro Channel is the sole “plug-in” refrigerated display case, fully conceived and manufactured by exploiting the “micro-channel” heat-exchange technology. This cabinet not only grants a significant consumptions cut but also a massive reduction of the gas charge. The above by using natural gas like Propane within the boundaries recommended by the imperative European Regulations in terms of security.
TEMPERATURES
Class:
3H(+1°C÷+10°C), 3M0(-1°C÷+4°C), 3M1(-1°C÷+5°C), 3M2(-1°C÷+7°C)
Merchandising Profile:
Beer and Wine, Chilled Drinks, Dairy, Milk & Cheese, Food to go, Fruit & Vegetables, Packed Meat & Fish, Ready Meals, Sausages & Salami, Snacks & Sandwiches
Features
- Innovative Microchannel Technology
- R290 natural gas
- Ultra-panoramic hinged and double glazed doors
- Flat top canopy
- Vertical LED lighting
- Unit with ON / OFF Compressor with air condensation
- Off-cycle defrosting
- Condensate drain by hot gas evaporation system
- Control panel with electronic controller
- EC Fans
- PVC Bumper
- PVC price label holder for shelves and base
- 5/6 shelves
Specification
Download Catalogue
General
| Title | Dimensions (mm) |
|---|---|
| Length without side walls mm | 1250, 1875, 2500, 3750 |
| Length with side walls mm | 1310, 1935, 1939, 2560, 3810 |
| Pair side walls thickness mm | 60 |
| Depth mm | 750, 850 |
| Height mm | 2050, 2160 |
| Height front mm | 348 |
| Shelf depth mm | 400, 500 |

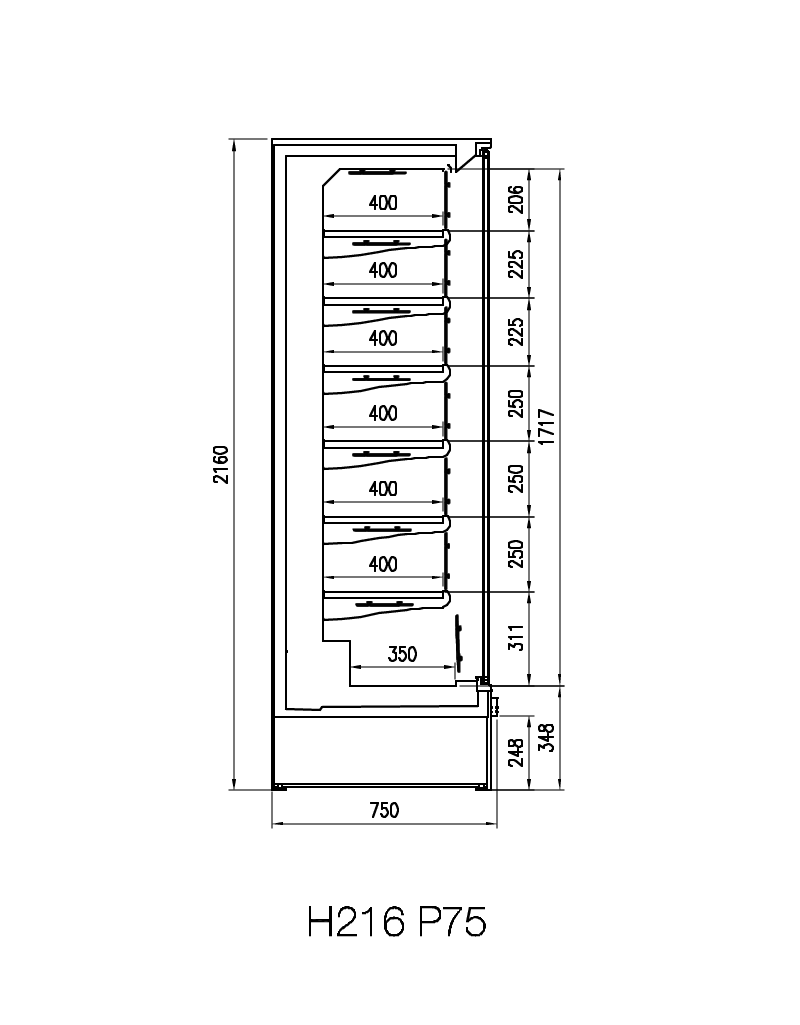

Cross Sections
