SENATOR LX
Counters
Remote refrigerated counter for meat, cold cuts, dairy and deli products. Senator is the ultimate expression for a panoramic view where the absence of uprights and ceiling lights, and a single glass element with 20 mm minimal chamfer guarantee a full product display.
TEMPERATURES
Class:
3M1, 3M2, NR
Merchandising Profile:
Dairy, Milk & Cheese, Delicatessen, Fresh Meat & Fish, Packed Meat & Fish, Ready Meals, Sausages & Salami, Snacks & Sandwiches
Features
- Multiplexable linear modules
- Front anti-mist ventilation
- Stainless Steel display plates
- Panoramic Sidewalls
- Sameless vision LX superstructure
- Numbered terminal box
- Working Table (200 mm)
Specification
General
| Title | Dimensions (mm) |
|---|---|
| Length without side walls | 0937, 1250, 1350, 1875, 2500, 3125, 3750 |
| Length with side walls mm | 1037, 1350, 1975, 2600, 3325, 3850 |
| Width with bumper mm | 1176 |
| Display surface mm | 900 |

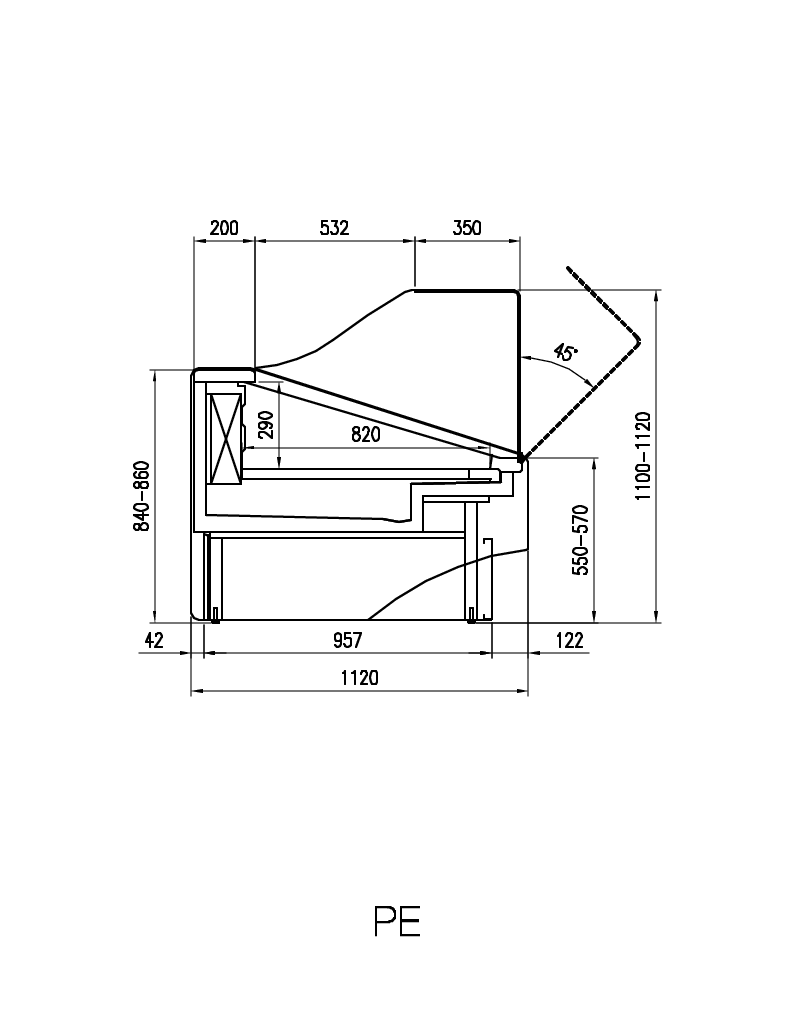

Cross Sections
